FirePro - Advanced Fire Protection Systems

THE NEXT GENERATION FIRE SUPPRESSION SYSTEM

FirePro Aerosol Fire Suppression System is designed to control and/or extinguish a fire using solid material which on activation is transformed into a rapidly expanding fire extinguishing aerosol based on potassium compounds. The extinguishing system is friendly to humans, environment friendly and it is classified as a Green Product with Zero Ozone Depletion Potential and Zero Global Warming Potential. It has relocatable flexibility with 15 years effective operable shelf life with virtually no maintenance. FirePro eliminates need for pipes and tanks and free up expensive real estate space commonly observed in other inert gases and halocarbon suppression systems.

FirePro Advantages:

INSTALLATION Advantages:

No mechanical pipework and equipment
No floor space has to be allocated for suppression agent storage cylinders
Easy to install, even in retrofit applications
No need for automatic venting systems to relieve pressure after discharge of suppression agent

MAINTENANCE Advantages:

No need for periodic checking of pressure gauges of agent storage cylinders
When room configuration is changed, every system component can be re-used with minor relocation work, and with addition devices, if needed

ENVIRONMENTAL Advantages

Zero Ozone Depletion Potential (ODP) and Zero Global Warming Potential (GWP)
Minimal atmospheric lifetime makes FirePro the most environment-friendly fire suppression agent with virtually no phase out period
Non-corrosive and Non-toxic properties make it safe for both personnel and equipment exposed to the aerosol discharge during fire
No harmful and no toxic by-products produced during fire.

FirePro Philippines is represented by Electro-Systems Industries Corporation.

Applications

Computer Data Centers
Telecommunications Rooms
Electrical Sub-Stations
Mine Sites
Suspended Ceilings
Archive/ Museums
Raised Floors
Explosive Rooms

UPS Systems
Electrical Panels
Warehouses
Laboratories
Marine Vessels
Semi-Conductor Plants
Pharmaceutical Plants
Many More

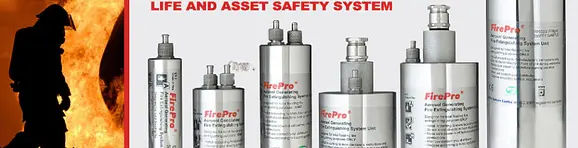

FirePro Product Range

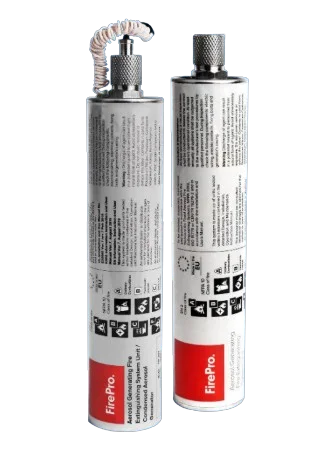

FP-20

Product Code: 10620 (FP-20T), 10649 (FP-20TH)
Description: FirePro Fire Extinguishing Generator FP-20T / FP-20TH

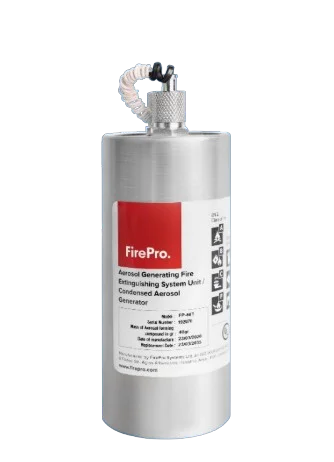

FP-40

Product Code: 10609
Description: FirePro Fire Extinguishing Generator FP-40T

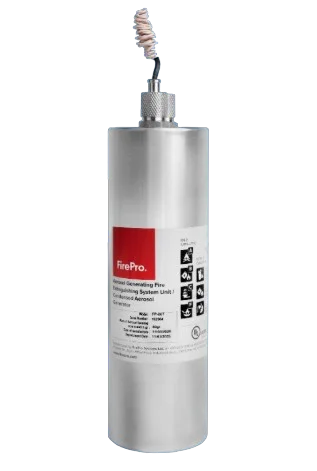

FP-80

Product Code: 10617
Description: FirePro Fire Extinguishing Generator FP-80T

FP-100

Product Code: 10140
Description: FirePro Fire Extinguishing Generator FP-100S

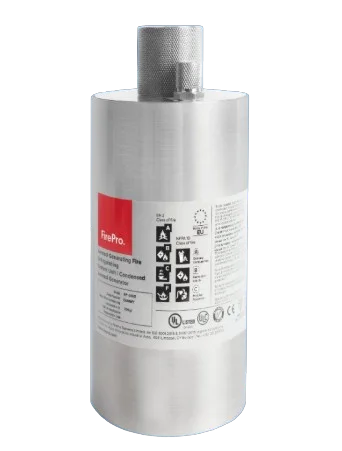

FP-200

Product Code: 10142
Description: FirePro Fire Extinguishing Generator FP-200S

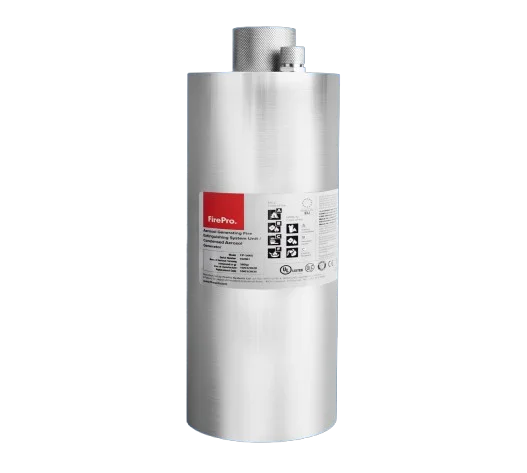

FP-500S

Product Code: 10145
Description: FirePro Fire Extinguishing Generator FP-500S

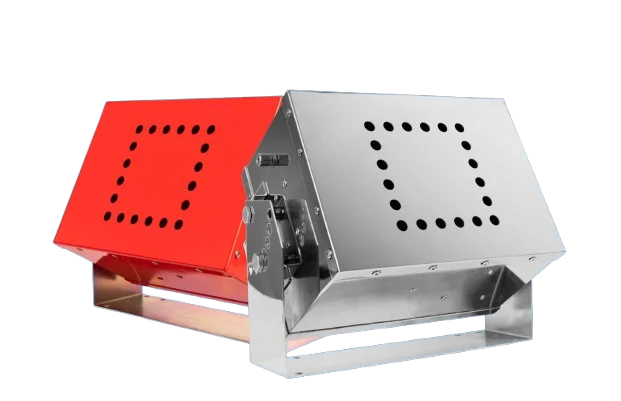

FP-1200 Series

Models: FP-1200, FP-1200T, FP-1200S, FP-1200TS

Description: FirePro Fire Extinguishing Generators FP-1200 series (Product Codes: 10147, 10316, 10395, 10622) - Certified by LPCB, UL, KIWA, & BSI...

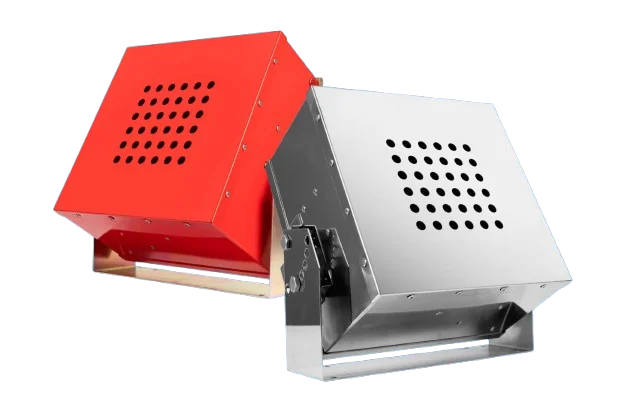

FP-2000 Series

Models: FP-2000, FP-2000T, FP-2000S, FP-2000TS

Description: FirePro Fire Extinguishing Generator FP-2000 (Product Code: 10149) - LPCB, UL, KIWA, MED & BSI Certified...

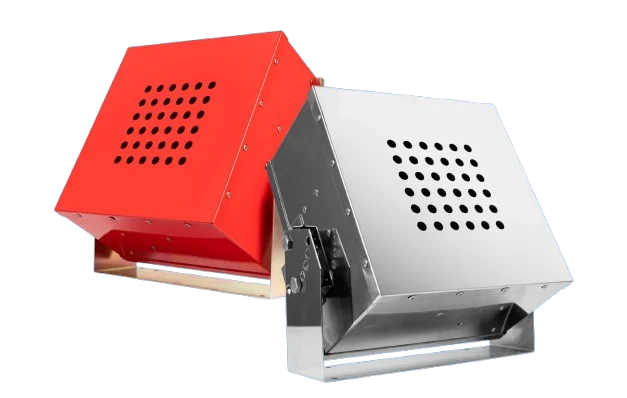

FP-3000 Series

Models: FP-3000, FP-3000T, FP-3000S, FP-3000TS

Description: FirePro Fire Extinguishing Generator FP-3000 (Product Code: 10150) - LPCB, UL, KIWA, MED & BSI Certified...

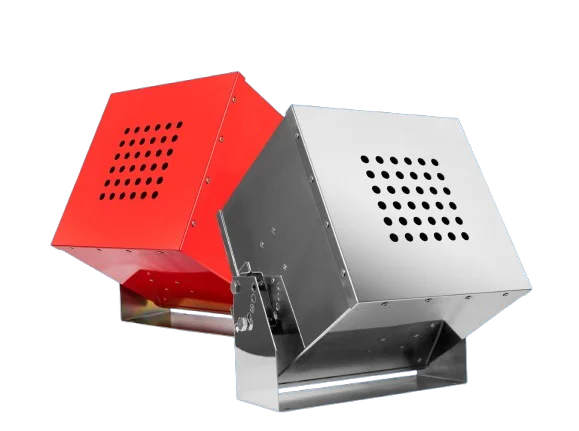

FP-4200 Series

Models: FP-4200T, FP-4200TS

Description: FP-4200 Series - All models are certified by LPCB, UL, KIWA, & BSI. All standard (No 'T') and Stainless Steel, and the FP-4200T/FP-4200TS models are also MED Certified...

FP-5700 Series

Models: FP-5700, FP-5700T, FP-5700S, FP-5700TS

Description: FirePro Fire Extinguishing Generators FP-5700 Series (Product Codes: 10151, 10318, 10394, 10625) - All models are LPCB, UL, KIWA, & BSI Certified...

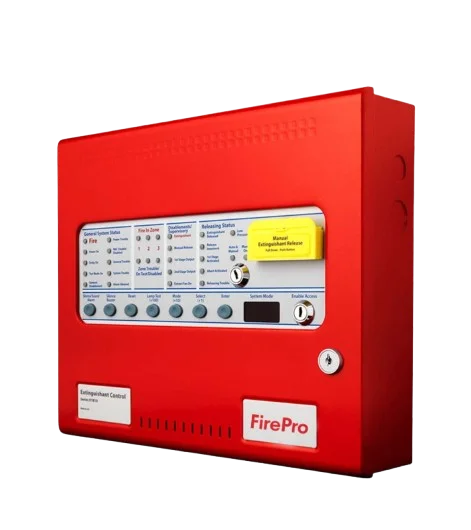

FirePro Delta FS Extinguishant Control Panel

Product Code: 10279
Description: Delta FS Releasing Fire Control Panel 230V FP-K1810-13

FirePro Delta FS Sequential Activator

Product Codes: FPSA-32G, FPSA-38G
Description: FirePro Delta FS Sequential Activator

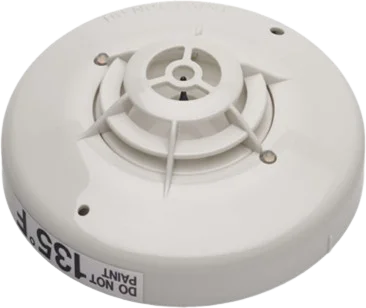

Conventional Heat Detector

Product Codes: 1001, 1002
Description: VF-2020-135F / VF-2021-190F Detector (with base)

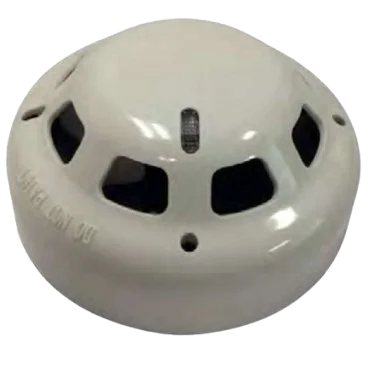

Conventional Photo Electric Smoke Detector

Product Code: 10961
Description: Detector (without base) VF2044-00

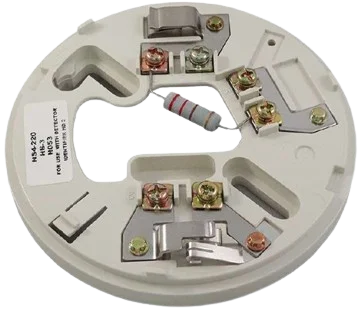

Conventional 4-inch Base for Detector

Product Code: 10907
Description: Conventional 4-inch Base for Detector ( VF2050-00)

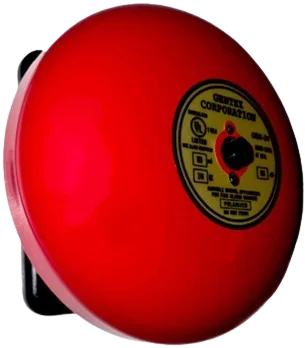

Fire Alarm Bell

Product Codes: 10424, 10660
Description: Fire Alarm Bell (GB6-24) / GBB/HCB Box for GB6 Bell (GBBB/HC-BB)

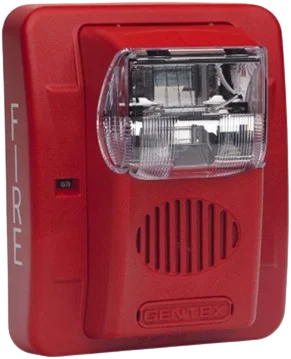

Horn Strobe

Product Code: 10793
Description: Horn/Strobe (GEC-24-15/75WR)

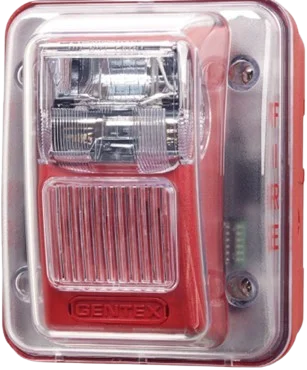

Weatherproof Horn/Strobe

Product Code: 10504
Description: Weatherproof Horn/Strobe (WGEC24-15/75WR)

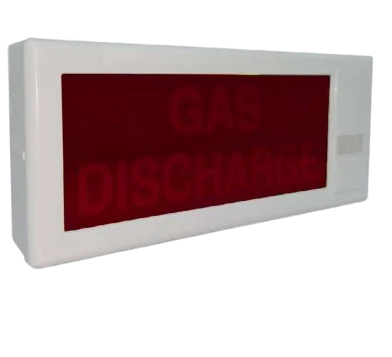

Gas Release Sign

Product Code: 1141
Description: Gas Discharge sign (LF20W)

Delta Manual
Extinguishant Isolation
Switch

Product Code: 10515
Description: Delta Manual Extinguishant Isolation Switch (FP-K1832-10)

Delta Abort Switch

Product Code: 10423
Description: Delta Abort Switch (FP-K1823-10)

FirePro ATEX Fire
Extinguishing
Generators

Category: Fixed Installations

Generator Model	Electrical Activation	Thermal Activation	Product Code
FP-100 EX	✓	–	11028
FP-200 EX	✓	–	11073
FP-500 EX	✓	–	11074
FP-100T (2G-EX)	✓	–	11080
FP-200T (2G-EX)	✓	–	11081
FP-500T (2G-EX)	✓	–	11082

Generator Model	Electrical Activation	Thermal Activation	Product Code
FP-1200 EX	✓	–	11075
FP-2000 EX	✓	–	11076
FP-3000 EX	✓	–	11077
FP-4200 EX	✓	–	11078
FP-5700 EX	✓	–	11079

FirePro Hero Manual
Aerosol Generators

Category: Manual Activation

Generator Model	Thermal Activation	Manual Activation	Product Code
FirePro Hero	–	✓
FP-200M	–	✓	11406
FP-500M	–	✓	11407
FP-1000M	–	✓	11408

VELEX Fire
Suppression Kits

Category: Vehicle Fire Suppression

Model	FP-20T / FP-20TH
Activation method	Electrical (FP-20T) Thermal (FP-20TH)
Weight (gross)	310g (excluding bracket)
Mass of FPC compound	20 g
Operational discharge time	5 - 10 seconds
Dimensions (Diameter : Height)	32 mm : 180 mm (incl. connector housing)
Fire class	EN 2: A, B, C, F - NFPA 10: A, B, C

Model	FP-40T
Activation method	Electrical Thermal
Weight (gross)	620 g (excluding bracket)
Mass of FPC compound	40 g
Operational discharge time	5 - 10 seconds
Dimensions (Diameter : Height)	51 mm : 155 mm (incl. connector housing)
Fire class	EN 2: A, B, C, F - NFPA 10: A, B, C

Model	FP-80T
Activation method	Electrical Thermal
Weight (gross)	830 g (excluding bracket)
Mass of FPC compound	80 g
Operational discharge time	5 - 10 seconds
Dimensions (Diameter : Height)	51 mm : 200 mm (incl. connector housing)
Fire class	EN 2: A, B, C, F - NFPA 10: A, B, C

Model	FP-100S
Activation method	Electrical Thermal
Weight (gross)	1,370 g (excluding bracket)
Mass of FPC compound	100 g
Operational discharge time	5 - 10 seconds
Dimensions (Diameter : Height)	84 mm : 155 mm (incl. connector housing)
Fire class	EN 2: A, B, C, F - NFPA 10: A, B, C

Model	FP-200S
Activation method	Electrical Thermal
Weight (gross)	1,840 g (excluding bracket)
Mass of FPC compound	200 g
Operational discharge time	5 - 10 seconds
Dimensions (Diameter : Height)	84 mm : 185 mm (incl. connector housing)
Fire class	EN 2: A, B, C, F - NFPA 10: A, B, C

Activation method	Electrical, Thermal
Weight (gross)	3,340 g (excluding bracket)
Mass of FPC compound	500 g
Operational discharge time	5 - 10 seconds
Dimensions	84 mm : 295 mm (incl. connector housing)
Fire class	EN 2: A, B, C, F - NFPA 10: A, B, C

Model	FP-1200 / FP-1200S / FP-1200T / FP-1200TS
Activation method	Electrical Thermal (FP-1200T / FP-1200TS)
Weight (gross)	10,900 g (excluding bracket)
Mass of FPC compound	1,200 g
Operational discharge time	10 - 15 seconds
Dimensions	216 mm x 300 mm x 167 mm
Fire class	EN 2: A, B, C, F - NFPA 10: A, B, C

Model	FP-2000 / FP-2000S / FP-2000T / FP-2000TS
Activation method	Electrical Thermal (FP-2000T / FP-2000TS)
Weight (gross)	15,500 g (excluding bracket)
Mass of FPC compound	2,000 g
Operational discharge time	10 - 15 seconds
Dimensions	300 mm x 300 mm x 185 mm
Fire class	EN 2: A, B, C, F - NFPA 10: A, B, C

Model	FP-3000 / FP-3000S / FP-3000T / FP-3000TS
Activation method	• Electrical • Thermal (FP-3000T / FP-3000TS)
Weight (gross)	16,300 g (excluding bracket)
Mass of FPC compound	3,000 g
Operational discharge time	15 - 20 seconds
Dimensions	300 mm x 300 mm x 185 mm
Fire class	EN 2: A, B, C, F - NFPA 10: A, B, C

Model	FP-4200T / FP-4200TS
Activation method	Electrical Thermal (optional for FP-4200T/FP-4200TS)
Weight (gross)	23,600 g (excluding bracket)
Mass of FPC compound	4,200 g
Operational discharge time	15 - 20 seconds
Dimensions	300 mm x 300 mm x 300 mm
Fire class	EN 2: A, B, C, F - NFPA 10: A, B, C

Model	FP-5700 / FP-5700S / FP-5700T / FP-5700TS
Activation method	• Electrical • Thermal (optional for FP-5700T/FP-5700TS)
Weight (gross)	26,400 g (excluding bracket)
Mass of FPC compound	5,700 g
Operational discharge time	15 - 20 seconds
Dimensions	300 mm x 300 mm x 300 mm
Fire class	EN 2: A, B, C, F - NFPA 10: A, B, C

Type	Releasing Fire Control Panel
Operating Voltage	230V AC
Model	FP-K80-13
Application	Fire Suppression System Release
Certifications	Complies with international standards
Dimensions	Standard panel size

Product Code	Model	Maximum Protected Compartment Volume (m³)
11139 - 11147	VELEX-1.5 Vehicle Fire Suppression Kit	1.5
11140 - 11147	VELEX-3 Vehicle Fire Suppression Kit	3
11141 - 11148	VELEX-4 Vehicle Fire Suppression Kit	4
11142 - 11148	VELEX-5 Vehicle Fire Suppression Kit	5
11143 - 11148	VELEX-6 Vehicle Fire Suppression Kit	6
11144 - 11149	VELEX-7 Vehicle Fire Suppression Kit	7
11145 - 11149	VELEX-8 Vehicle Fire Suppression Kit	8

Meets Requirements	UL, ULC, NFPA 72 Chapter 2 & 7
Operation	High stability, RFI/EMI protection

Approval	UL/VDS
Alarm Current	93mA (136mA @ 33V max)
Base Type	4-inch plastic tamper-lock lug base
Compatibility	VES analog sensors

Housing Size	6"
Approvals	UL/ULC S3406
Use	Indoor and Outdoor (with backbox)
Output	High dBA

Voltage	24V DC
Sound Output	99 dBA
Certifications	UL Listed
Mounting	Wall or ceiling
